Introduction
The Freightliner motor home gauge cluster A06-79587-002 is an essential component for monitoring and managing vehicle performance in Freightliner motorhomes. It provides crucial data such as speed, fuel levels, engine temperature, and other diagnostics that ensure smooth operation.
If you’re experiencing issues with your Freightliner motor home gauge cluster A06-79587-002, or if you’re looking to replace or upgrade it, this guide will cover everything you need to know. From features and troubleshooting to replacement and installation tips, we’ve got you covered.
What Is the Freightliner Motor Home Gauge Cluster A06-79587-002?
Overview of the Gauge Cluster

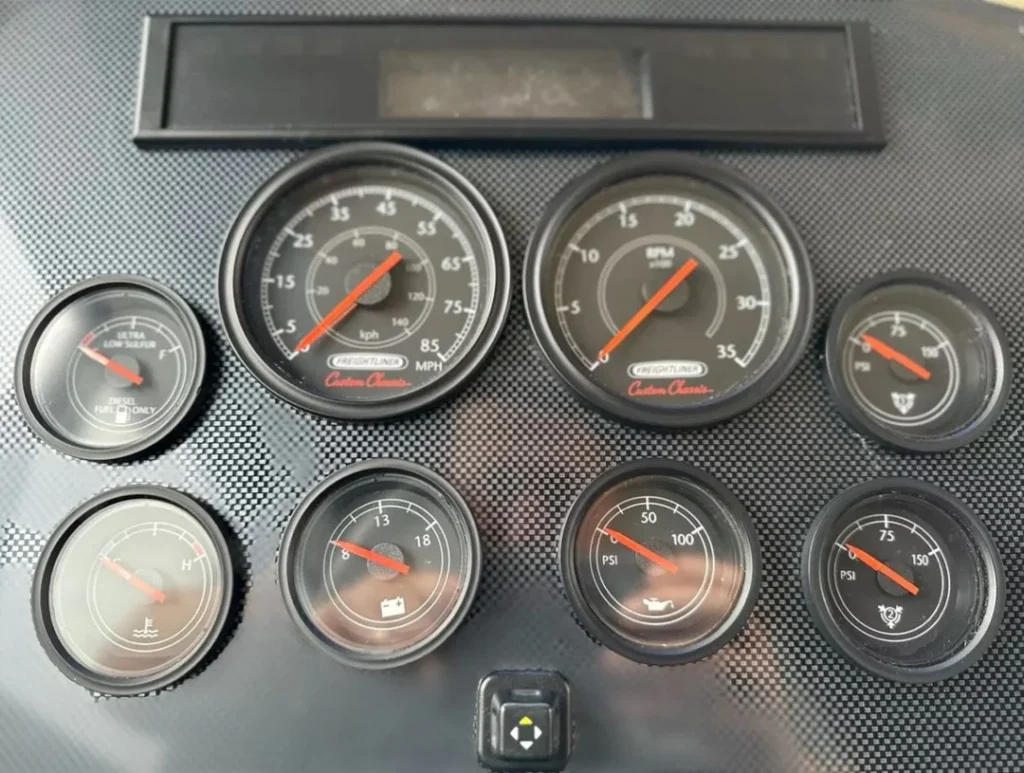

The Freightliner motor home gauge cluster A06-79587-002 is a dashboard panel that consolidates multiple indicators into one display. It serves as the driver’s main interface with the vehicle’s performance metrics, ensuring safe and efficient operation.
Features of the Gauge Cluster
- Multiple Gauges: Displays speed, RPM, fuel level, oil pressure, coolant temperature, and voltage.
- Digital and Analog Displays: Some models feature a combination of digital and analog readings for better clarity.
- Backlit Display: Ensures visibility in all lighting conditions.
- Warning Indicators: Alerts for low fuel, overheating, or check engine conditions.
- Durability: Designed for heavy-duty applications with weather-resistant casing.
Common Issues with the Freightliner Motor Home Gauge Cluster A06-79587-002
Even though the Freightliner motor home gauge cluster A06-79587-002 is built to last, users sometimes experience issues. Below are some of the most common problems:
1. Gauges Not Responding
One of the most common issues is non-responsive gauges, which can be caused by:
- Loose or damaged wiring connections
- A failing instrument cluster module
- Blown fuses
2. Inaccurate Readings
If your speedometer, fuel gauge, or temperature gauge is showing incorrect readings, possible causes include:
- Faulty sensors
- Damaged wiring
- Calibration issues
3. Flickering or Dim Display
A dim or flickering display can make it difficult to read important information. This might be due to:
- A failing backlight
- Electrical issues such as a weak battery or alternator
- Loose connections behind the dashboard
4. Warning Lights Staying On
If warning lights remain illuminated even after fixing the underlying issue, the cluster may require resetting or recalibration.
How to Troubleshoot the Freightliner Motor Home Gauge Cluster A06-79587-002
Step 1: Check the Fuses
A blown fuse can cause the entire cluster to stop working. Locate the fuse box in your Freightliner motorhome and inspect for blown fuses. Replace any faulty ones.
Step 2: Inspect Wiring and Connectors
Loose or damaged wiring can interrupt the signals going to the gauge cluster. Check behind the dashboard and ensure all connections are secure.
Step 3: Perform a Gauge Cluster Reset
To reset the cluster, follow these steps:
- Turn off the engine and remove the key.
- Disconnect the battery for about 10 minutes.
- Reconnect the battery and start the engine.
- Check if the gauges have reset to their normal operation.
Step 4: Use a Diagnostic Scanner
A diagnostic tool can help identify underlying issues with the instrument cluster. Plug it into the OBD-II port to scan for error codes.
Replacing the Freightliner Motor Home Gauge Cluster A06-79587-002
If troubleshooting does not resolve the issue, you may need to replace your Freightliner motor home gauge cluster A06-79587-002. Here’s how:
Tools Required
- Screwdrivers (Phillips and flathead)
- Socket wrench set
- Electrical tape
- New gauge cluster (A06-79587-002)
Step-by-Step Replacement Guide
- Disconnect the Battery: To avoid electrical damage, disconnect the battery before starting.
- Remove Dashboard Trim: Unscrew and carefully pry off the dashboard panel surrounding the cluster.
- Unplug the Wiring Harness: Gently disconnect the wiring harness attached to the back of the cluster.
- Remove the Old Cluster: Unscrew and take out the faulty gauge cluster.
- Install the New Cluster: Align the new gauge cluster and secure it with screws.
- Reconnect the Wiring Harness: Ensure all connections are firmly in place.
- Reinstall the Dashboard Trim: Attach the panel back and screw it in securely.
- Reconnect the Battery and Test: Turn on the engine to check if the new gauge cluster is working correctly.
Maintenance Tips for the Freightliner Motor Home Gauge Cluster A06-79587-002
To extend the lifespan of your Freightliner motor home gauge cluster A06-79587-002, follow these maintenance tips:
- Regularly Inspect Wiring: Check for loose connections or frayed wires.
- Keep the Dashboard Clean: Dust and debris can affect visibility and operation.
- Check for Software Updates: Some modern gauge clusters may require firmware updates.
- Monitor Battery Health: A weak battery can cause erratic gauge readings.
Frequently Asked Questions (FAQs)
1. What vehicles use the Freightliner motor home gauge cluster A06-79587-002?
This gauge cluster is specifically designed for Freightliner motorhomes but may be compatible with other Freightliner models that use a similar dashboard configuration.
2. Can I install the gauge cluster myself?
Yes, with the right tools and basic mechanical knowledge, you can replace the gauge cluster yourself by following the steps outlined above.
3. Why are my gauges not working even after replacement?
If the gauges still do not work after replacing the cluster, check for issues in the wiring harness, fuses, or vehicle ECU. Using a diagnostic scanner can help pinpoint the problem.
4. How much does it cost to replace a Freightliner motor home gauge cluster A06-79587-002?
The cost of a replacement gauge cluster varies, but it typically ranges between $500 and $1,500, depending on the supplier and whether installation is included.
5. Where can I buy a Freightliner motor home gauge cluster A06-79587-002?
You can purchase this gauge cluster from Freightliner dealerships, online marketplaces, and specialty truck parts suppliers. Ensure that you buy from a reliable source to get an authentic product.
Conclusion
The Freightliner motor home gauge cluster A06-79587-002 is a critical component for monitoring your motorhome’s performance. Whether you’re troubleshooting an issue, considering a replacement, or looking for maintenance tips, this guide provides everything you need to keep your Freightliner running smoothly. By understanding how your gauge cluster works and following proper maintenance practices, you can ensure a safe and efficient driving experience
